NEW
- CUSTOM
HIGH
GAIN ANTENNAS!
All
broadcast antennas are backed by our 30 day money
back guarantee and can be shipped anywhere
in the world!
Virtual
Communications is proud to offer Quality,
Custom Made, High Gain Transmission Antennas.
Guaranteed
to out perform any single antenna
currently available on the market!
 This
high performance heavy duty 6 meter antenna was specifically
designed to handle the demanding requirements for repeater use.
With a base diameter of 1-3/4 inches and nearly 1/8 thick high
grade 6061 magnesium alloy aluminum tubing. It's large open frame
matching transformer easily handles 1 KW of RF power. The wide
bandwidth of the 5/8 wave design provides under 2:1 VSWR over the
entire 50 to 54 MHz. band with a perfect match at it's tuned
frequency. It's "virtual mirror" ground plane system
utilizes eight 1/4 wave ground radials to insure the highest
efficiency possible.
Several samples were
sold last year with excellent customer response but
production of this 5/8 wave is still very limited. This is a
unique opportunity to own one of these rare high performance 6
meter antennas. For years there have been many home brew projects
to construct similar antennas but no high quality versions have
been commercially available until now. This is the perfect antenna
for a 6 meter repeater project or high performance base station
installations. Norwalk Electronics guarantees no single other 6
meter omni directional antenna in production can outperform this
5/8 wave.
Several
close pictures of the antenna are provided in an effort to clearly
show the quality of construction used. 10 gauge enameled copper
wire is used in the RF transformer wound for maximum efficiency on
6 meters. The alloy tubing is drawn and cemented onto the coil
form during assembly. The aluminum tubing is also riveted through
the coil form for maximum strength and the RF connections are
insured by hex set screws machined into the aluminum hubs. The
coax connector has both a lower and upper weather seal to prevent
water from migrating into the coax line. The 8 radials show the
brass inserts added for durability while the opposite ends have
PVC caps cemented in place.
|
Click Image for a
Closer View

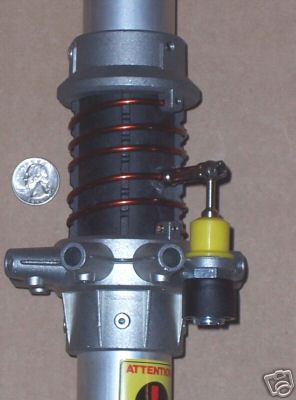

Base Coil

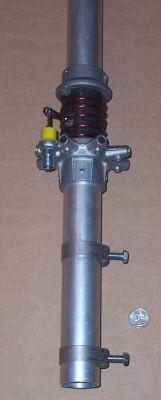

Base Mount

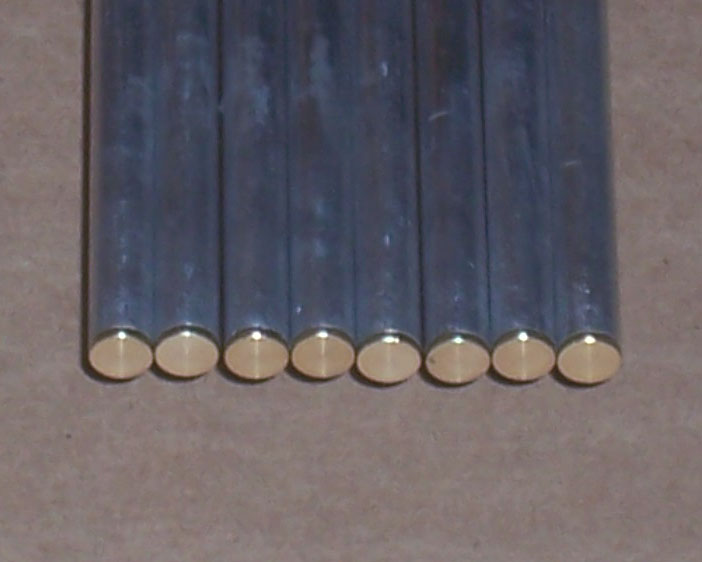

Radial Inserts
|
SPECIFICATIONS
| Model
: |
Dominator
6M |
| Type
: |
5/8
Wave Ground Plane |
|
Frequency
Range :
|
50
-
54 MHz |
| Impedance
: |
50
Ohm Unbalanced |
| Radiation
(H-plane) : |
360
degree onmi |
| Gain
: |
2
dBd or
4.15 dbi |
| Bandwidth
@ VSWR 2:1 : |
4000
KHz |
| VSWR
@ res. freq. : |
1.1:1 |
| Max
Power : |
1500
Watts |
| Feed
System : |
Transformer
DC-Ground |
| Connector
Type : |
UHF
Female |
| Height
(approx.) : |
13
Feet |
| Weight
: |
10
Pounds |
| Mounting
Mast : |
1-1/4
to
1-1/2 Inch |
Be
sure to check out the latest specials
and discounts on our specials page!
|
5/8
Wave - 6 Meter Antenna $220.00
- FREE
SHIPPING
|
This is a no risk offer. If you are not
completely satisfied within 30 days of receiving your antenna,
you can send it back for a full refund of the purchase price.
|
