Dominator
FM Broadcast Antenna Specifications
All
antennas on our website are backed by our
30 Day Money
Back Guarantee
and for a
limited time only
FREE SHIPPING
in the United
States!
Guaranteed
to out perform any single antenna
currently available on the market!
|
Gain:
6 db
|
| Length:
9 feet |
|
Impedance:
50 ohms
|
| Polarization:
Vertical |
| Wavelength:
.82 wave |
| Weight:
Approx. 7 to
8 pounds |
| Wind
load: .7 square feet |
| Max.
wind speed: 100 MPH |
| Bandwidth:
5 MHz @ <1.5:1 |
| VSWR:
1:1 at tuned frequency |
| Frequency
range: 88-110 MHz. (Tunable) |
| Material:
High grade 6063 alloy aluminum |
| Connector:
N
or SO-239 (7/16"
DIN for 3 KW.) |

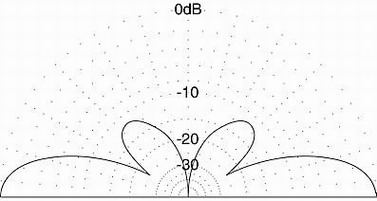

| Radiation
pattern: Low angle omni (14
degrees) |
| Lightning
protection: DC grounded
radiator |
| Maximum
Power: 1 Kilowatt.
(3 KW high power) |
Be
sure to check out the latest specials and discounts on our specials page!
|
|
|
1KW
Model $349.00
|
3KW
Model $459.00 |
|
